The human eye diagram is one of the most predictable questions in Class 10 Science, and one of the easiest places to lose marks you already earned in class. The structure is simple. What goes wrong is the drawing and labelling, because almost nobody practises it on purpose.
This guide shows how to draw the human eye diagram in a clear order, what each label means in one line, and the small slips that quietly cost marks. It also shows where the diagram leads once you move beyond Class 10.
Draw First, Label Second
A five-step sketch order

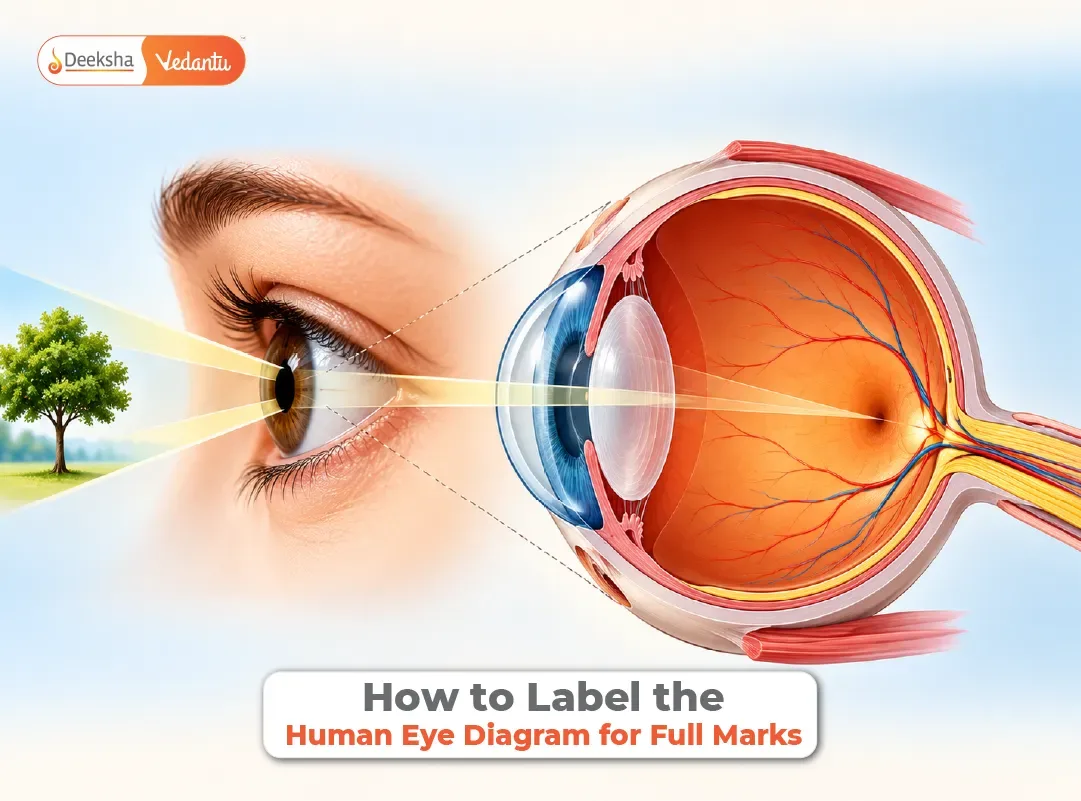

Labels go wrong when the drawing is wrong, so build the human eye in this order:
- The eyeball. Draw a near-circle, slightly bulging at the front. That bulge is the cornea.
- The iris and pupil. Just behind the cornea, draw the iris as two short dark bars, leaving a gap between them. The gap is the pupil.
- The lens. Behind the pupil, draw the eye lens as a double-convex (biconvex) shape. A flat or concave lens is a common slip.
- The ciliary muscles. Attach them to the top and bottom of the lens, since they hold it and change its curvature.
- The retina and optic nerve. Run the retina along the inner back wall of the eyeball, and draw the optic nerve leaving the back.
Neat labelling rules
- Use a sharp pencil and a ruler for the label lines.
- Stop each line exactly on the part it names, and never let two lines cross.
- Write all labels in a tidy column on one side of the figure.
- Add a title such as “Human eye” below the diagram.
Every Label in One Line
Use this table to check both where each label line should land and what the part does.
| Part | Where to point the label line | What it does |
| Cornea | The transparent bulge at the front | Light enters here, and most of the refraction happens at its outer surface |
| Aqueous humour | The space between cornea and lens | Watery fluid that fills the front chamber |
| Iris | The dark ring behind the cornea | A muscular diaphragm that controls the size of the pupil |
| Pupil | The gap at the centre of the iris | Regulates the amount of light entering the eye |
| Eye lens | Behind the pupil | Fine-tunes the focal length so the image falls on the retina |
| Ciliary muscles | Above and below the lens | Change the curvature of the lens |
| Vitreous humour | The space between lens and retina | Clear, jelly-like fluid that fills the back chamber |
| Retina | The inner back wall | A light-sensitive screen that turns the image into electrical signals |
| Optic nerve | Leaving the back of the eyeball | Carries those signals to the brain |
The aqueous and vitreous humours appear in many reference diagrams, but the main NCERT text focuses on the cornea, iris, pupil, lens, ciliary muscles, retina and optic nerve. Label the humours when your textbook figure or your teacher includes them.
The Three Answers Behind the Diagram
Examiners rarely stop at the figure. A diagram question is often paired with one of these three short explanations.
Where the image forms, and what kind it is
The eye lens forms a real, inverted image of the object on the retina. The retina converts this image into electrical signals, and the optic nerve carries them to the brain, which interprets the image as upright.
How the iris and pupil protect the eye
In bright light, the iris makes the pupil smaller so less light enters. In dim light, the pupil widens to let more in. Students often struggle to explain why this happens, so see why pupils change size in bright and dark rooms for a fuller picture.
How ciliary muscles help you see near and far
This is the power of accommodation, and it is easiest to remember as a pair of opposites:
| Looking at | Ciliary muscles | Eye lens | Focal length |
| A distant object | Relaxed | Thinner | Longer |
| A nearby object | Contracted | Thicker | Shorter |
A useful check: when you read a book up close, the ciliary muscles are working hard, which is why your eyes feel tired after long reading sessions.
Slips That Quietly Cost Marks
- Drawing a flat or concave lens. The eye lens is a double-convex lens, and the diagram should show it.
- Pointing “cornea” at the lens. The cornea is the clear front surface. The lens sits behind the pupil.
- Mixing up iris and pupil. The iris is the coloured muscle. The pupil is the opening in the middle of it.
- Swapping the two humours. Aqueous humour is in front of the lens, and vitreous humour is behind it.
- Drawing the retina as a thin outline. It is the inner lining of the back wall, so draw it along that whole wall.
- Placing the optic nerve in front of the eye. It leaves from the back of the eyeball.
- Crossing label lines or leaving them uneven. Messy labels make correct answers harder to read.
- Forgetting the one-line explanation. If the question asks for a labelled diagram and the function of two parts, give both.
The same discipline applies to other diagrams in the paper. If you also draw ray diagrams, read these ray diagram mistakes in mirrors and lenses as well.
Where This Diagram Takes You Next
In your school syllabus
The human eye sits in Class 10 Science, Chapter 10: The Human Eye and the Colourful World (NCERT numbering for 2026-27). The chapter covers the structure of the eye, the power of accommodation and the defects of vision. State Board and ICSE textbooks cover the same ideas under their own chapter titles, so check your book for the exact name. For further revision, try the Class 10 human eye MCQs with answers and these human eye numericals with solutions.
After Class 10
The eye returns in Class 11 Biology, in the chapter on neural control and coordination, with a more detailed structure. A word of caution for NEET aspirants: published deleted-topic lists show the elementary structure and function of the eye and ear among the topics removed from the recent NEET syllabus. Even so, the Class 10 diagram remains a foundation for understanding light, lenses and defects of vision, and it still earns marks in board exams. For defects such as myopia and hypermetropia, see the notes on defects of vision and quick revision.
Why diagram skills are worth building early
Drawing and labelling is a skill, not a talent, and like any skill it improves with regular practice well before the pressure of board exams arrives. That is the thinking behind Deeksha Vedantu’s Foundation Program for Grades 8, 9 and 10, which builds concepts and good study habits in Science and Mathematics early.
Frequently Asked Questions
Q1. What are the main parts of the human eye in Class 10?
The main parts are the cornea, iris, pupil, eye lens, ciliary muscles, retina and optic nerve. Many diagrams also show the aqueous humour in front of the lens and the vitreous humour behind it.
Q2. Which part of the eye controls the amount of light entering it?
The iris controls the size of the pupil, and the pupil regulates the amount of light that enters the eye. In bright light the pupil becomes smaller, and in dim light it becomes wider.
Q3. Where is the image formed in the human eye?
The eye lens forms a real, inverted image on the retina. The retina sends signals through the optic nerve to the brain, which interprets the image as upright.
Q4. How do the ciliary muscles help us see near and far objects?
To see a distant object, the ciliary muscles relax, the lens becomes thinner and its focal length increases. To see a nearby object, they contract, the lens becomes thicker and its focal length decreases.
Q5. Does the human eye diagram matter beyond Class 10?
Yes, the eye returns in Class 11 Biology and supports your understanding of lenses and defects of vision. For NEET, published deleted-topic lists show the elementary structure and function of the eye removed in recent years, so always check the latest official syllabus for your exam year.
